CorroShrink
Protection at the pipe's weakest point, the joint.
Corrosion Protection, That Lasts
The CS-60 heat activated shrink wrap provides unmatched corrosion protection for pipelines operating up to 60 °C. The flexible radiation cross-linked polyethylene backing, coupled with a unique built-in hot melt adhesive provides premium structural and operation integrity. CS-60 is a stretchable, hand-wrapped, heat-shrinkable sleeve specifically designed for corrosion protection on all pipes operating under 140 °F Once the pipe is buried, there can be no question that it is protected from corrosion.
KINGSMEN AND CorroShrink
Our products and solutions have your covered
Why CorroShrink?
- Non-Tacky until heat is applied when ready to install allowing it to be dropped or folded over onto itself and still be fully functional
- Lower softening point for faster/seamless field installation
- Supplied in bulk rolls for field cutting to fit any pipe

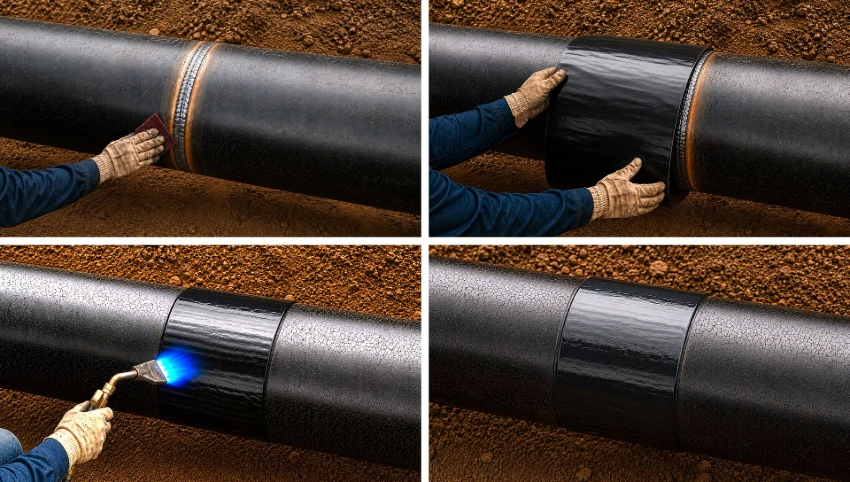

- Open sleeve configuration for installing after the pipe has been welded and cleaned
- Thicker outer layer for long term protection
- Thicker adhesive layer for extra protection
- High performance adhesive layer provides superior resistance to cathodic disbondment
- When fully cured, becomes equivalent of a seamless tube protecting it’s contents from external abrasion and chemical intrusion
CorroShrink CS-60
The CS-60 heat activated shrink wrap provides unmatched corrosion protection for pipelines operating up to 60 °C. The flexible radiation crosslinked polyethylene backing, coupled with a unique built-in hot melt adhesive provides premium structural and operation integrity. CS-60 is a stretchable, hand-wrapped, heat-shrinkable sleeve specifically designed for corrosion protection on all pipes operating under 140 °F Once the pipe is buried, there can be no question that it is protected from corrosion.
Heat shrink sleeve sizes come in a 18 & 24 inch wide, 100 foot roll, at 2mm thick. Also available are 50 foot rolls at 31 & 36 inches wide with 2mm thickness.
Four Industry Standard Sizes Available
CS60-18/100-2mm
Heat Shrink Sleeve suitable for up to 60 Deg. C pipe operating tolerance, 18 inch wide, 100 ft. roll, 2 mm thick
CS60-24/100-2mm
Heat Shrink Sleeve suitable for up to 60 Deg. C pipe operating tolerance, 24 inch wide, 100 ft. roll, 2 mm thick
CS60-31/50-2mm
Heat Shrink Sleeve suitable for up to 60 Deg. C pipe operating tolerance, 31 inch wide, 50 ft. roll, 2 mm thick
CS60-36/50-2mm
Heat Shrink Sleeve suitable for up to 60 Deg. C pipe operating tolerance, 36 inch wide, 50 ft. roll, 2 mm thick
Purpose Built For Your Applications
Don't see your industry. Give us a call and we can walk you through how CorroShrink can work for you.
Oil & Gas
Offshore Pipelines
Polypropylene
Water
Pipelines
Pre-Insulated Pipes
Girth-Weld Joints
Technical Specifications
The CS-60 heat activated shrink wrap provides unmatched corrosion protection for pipelines operating up to 60 °C. The flexible radiation cross-linked polyethylene backing, coupled with a unique built-in hot melt adhesive provides premium structural and operation integrity. CS-60 is a stretchable, hand-wrapped, heat-shrinkable sleeve specifically designed for corrosion protection on all pipes operating under 140 °F Once the pipe is buried, there can be no question that it is protected from corrosion.
Adhesive Properties
Backing Properties
Sleeve Properties
*Actual temperature rating can vary depending on actual site conditions and project requirements, further consulation may be necessary
Sleeve Operating Characteristics
Up to 60°C (140°F)
Pipeline Operation Temperature
75°C (167°F)
Minimum Installation Temperature
PE, PP, FBE, HPPC
Mainlin Coating Compatibility
